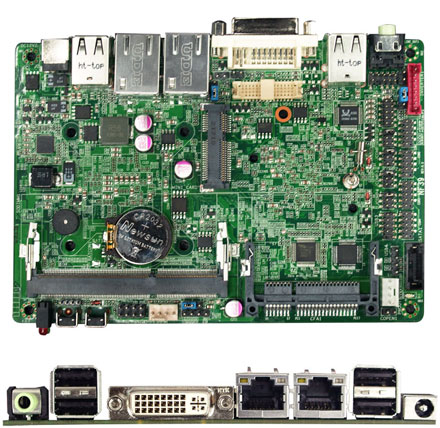

Jetway NF39-1047 (Intel HM65)

Jetway NF39-1047 (Intel HM65)

  • INTEL® Celeron-M Processor 1047UE + HM65 Chipset
  • Support 1 * DDR3 1066/1333MHz Single CH up to 8GB
  • Support 1 * Serial ATAIII (6Gb/s) Devices
  • Support CFast card
  • Support mSATA card (Share with Mini PCI-E)
  • Support Mini PCI-E x 1
  • Integrated Realtek ALC662 HD Audio CODEC with 2CH
  • 1 * 24 bits Dual Channel LVDS header
  • Support DVI-I Output
  • Supports 2 * Realtek RTL8111F-CG Gigabit LAN
  • Support CPU Smart FAN
  • Support RS232/422/485 on COM1
  • 148 x 102mm 3.5” SBC Form Factor


Share

279.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks.
Will be ordered for you.
Add to cart
RAM :

SSD (mSATA):

Build/Install:
CPU INTEL® Celeron-M Processor 1047UE (1.4GHz)
Chipset INTEL®HM65 Express chipset
Memory 1 * DDR3 1066/1333MHz Single CH SO-DIMM up to 8GB
Expansion Slots 1 * MINI PCI-E
Storage 1 * Serial ATAIII 6Gb/s connector
1 * CFast card socket
1 * mSATA (Share with Mini PCI-E)
Audio Realtek ALC662 HD Audio CODEC with 2-Channel
Ethernet LAN 2 * RTL8111F-CG Gigabit LAN
USB Embedded 7 * USB 2.0/1.1
LVDS Onboard 1 * 24-bits Dual channel LVDS connectors
Rear Panel I / O 4 * USB 2.0/1.1 ports
2 * RJ-45 ports
Line-out port
1 * DVI-I port
1 * 12V DC-IN JACK
Internal I / O 2 * USB 2.0 header for 3 * USB 2.0 ports
1 * Audio header
System/Chassis/NB Fan Connectors
1 * GPIO header
1 * CFast card reader socket
DIY switch x2 (reset & power button)
4 * COM header (COM2~4 for RS232,COM1 for RS232/422/485)
BIOS AMI 32MB SMT Flash ROM
Form Factor 3.5” SBC form factor (148mmx102mm)
Certificate CE,FCC,RoHS,ERP
Functional ATM, Automation, Medical Equipment, Security, General Application, Transportation, Digital Signage, Kiosk, POS machine, LCD TV PC, Embedded Fanless application
Temperature Operating within 0~60 centigrade
Storage within -20-85 centigrade
Data sheet Download (PDF)
Data sheet Print view
