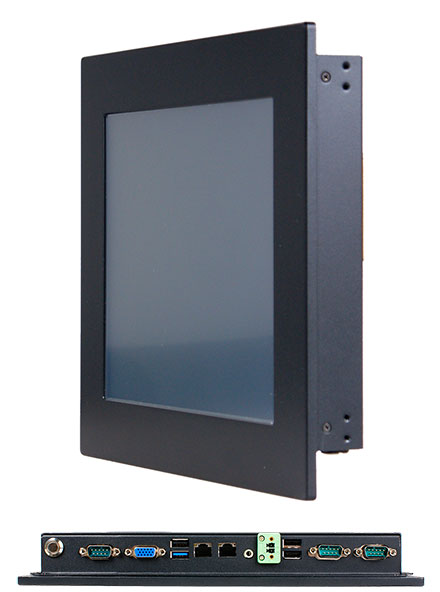

Jetway HPC-104BR-2930-4G Panel-PC (10.4" 800x600 5W Touchscreen, Intel Celeron N2930, 4GB RAM)

Jetway HPC-104BR-2930-4G Panel-PC (10.4" 800x600 5W Touchscreen, Intel Celeron N2930, 4GB RAM)

  • INTEL® BayTrail--M N2930 SOC Chip
  • Onboard INTEL® BayTrail-M N2930 1.83GHz Quad Cores CPU
  • Onboard SAMSUNG 4G/1333MHz DDR3L Memory
  • Support DirectX 11 3D Graphics Acceleration
  • Support 1*Serial ATAII(3Gb/s) Devices
  • Support Dual INTEL® Gigabit LAN
  • Support CRT Output
  • Equipped with 802.11 b/g/n WIFI card & External Antenna
  • Support 3* COM ports（COM2/COM3 Support RS422/485）
  • Support 2.5” SATA HDD
  • Support 1*M-SATA Socket
  • Support 1*Mini PCI-E Socket
  • Support 3* USB2.0 Ports
  • Support 1* USB3.0 Port
  • Support 3G SIM Card
  • Support slick design
    • [more]

    Share

918.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks.
Will be ordered for you.
Add to cart
RAM :

  • INTEL® BayTrail--M N2930 SOC Chip
  • Onboard INTEL® BayTrail-M N2930 1.83GHz Quad Cores CPU
  • Onboard SAMSUNG 4G/1333MHz DDR3L Memory
  • Support DirectX 11 3D Graphics Acceleration
  • Support 1*Serial ATAII(3Gb/s) Devices
  • Support Dual INTEL® Gigabit LAN
  • Support CRT Output
  • Equipped with 802.11 b/g/n WIFI card & External Antenna
  • Support 3* COM ports（COM2/COM3 Support RS422/485）
  • Support 2.5” SATA HDD
  • Support 1*M-SATA Socket
  • Support 1*Mini PCI-E Socket
  • Support 3* USB2.0 Ports
  • Support 1* USB3.0 Port
  • Support 3G SIM Card
  • Support slick design
  • VESA mount(100mm X100mm &75mm x 75mm)

Panel
Panel Spec AUO G104STN01.0
Viewable Size Image 10.4 inch With LED Backlight
Active Area 211.2(H) x 158.4(V)
Resolution 800 x 600 @60Hz
Display Color 262K
Pixel Pitch 0.264 x 0.264 mm
Aspect Ratio 4:3
Contrast Ratio 700:1
Max Brightness 400 cd/m²
Viewing Angle(H/V) H160/V130
Response Time 10ms
Temperature Range -30 ～ +80℃(Operating)
Touch
Touch panel style 5 wires analog resistive
Active Range 211.58 x 158.75mm ±0.2mm
Temperature Range -10 ~ +60℃(Operating)
Transparency 80 ±3%
Surface Hardness ≧ 3H (ASTM D3363, pressure 750g/45°)
Operating Force ≦ 80g
Knock test 10,000,000 times keystrokes
Case
Panel Material Aluminum
Case Material Iron
Color Black
Coating Requirement Spray Paint
Protection grade（IP） IP65
Speaker N/A
Bracket 6 (Top:2pcs、Side:4pcs, Optional)
Installation Type Open Frame / Wall Hanging（Optional）
Cooling Mode Fan less Fully sealed design
System Specification
Form Factor 4”
Processor INTEL® BayTrail-M N2930 1.83GHz/QC
System Chipset INTEL® BayTrail-M N2930 (SOC)
System Memory 4G/1333MHz DDR3L SAMSUNG DRAM
BIOS 64MB SPI Flash ROM
Ethernet 2*INTEL® I211AT Gigabit LAN
Audio Realtek®  ALC887 HD Audio
Storage 1* Serial ATA2 3Gb/s connector
1* M-SATA connector
WIFI Module N/A(Option)
Optical Device N/A
Expansion PCI-E mini card for WLAN
Display Output CRT
I.O Port 1*USB3.0、3*USB2.0、1*RS232、
2*RS232/422/485、1*Line-out
Power Adapter DC-IN (9~24V,Euro terminal block)
OS Support Windows 7/8/8.1
Temperature Operating：-10 ~ +60℃
Humidity 20%~90% (non condensing)
Shock Operating：15G，11ms duration
Vibration  Operating：5~500Hz/1 Grms
Net Weight (kg) 　
Dimension 284.0mm*230.0mm*37.0mm
Certification FCC   CE   IP65
Other Support Non wire I.O interface output
Other Information
Application Commercial、Banking、Digital Signage
POS/KIOSK、Industrial Automation
Special Features Metal design, compact、slick
Other Optional wall hanging telescopic bracket, etc., can also be used as the embedded security
 Accessory
Adapter 1* 60W AC-DC Adapter
Power cord 1*Power cord
Manual 2*Manual
CD 1*CD
Other 2* WI-FI antenna
Data sheet Download (PDF)
