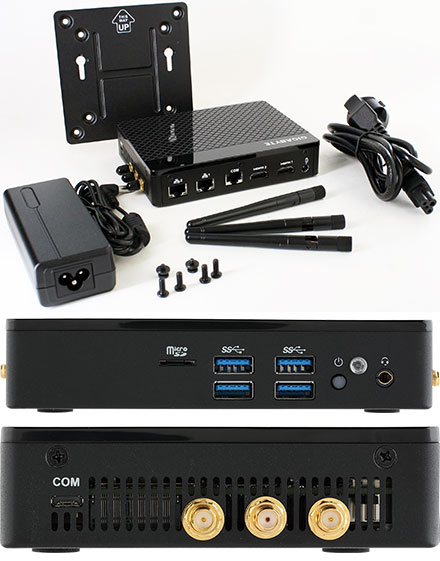

Gigabyte EL-30-3350 (Intel Apollo Lake N3350, 32GB eMMC, 2x LAN, WLAN/BT, Zigbee, VESA) [FANLESS]

PRODUCT IS CURRENTLY NOT AVAILABLE !
Gigabyte EL-30-3350 (Intel Apollo Lake N3350, 32GB eMMC, 2x LAN, WLAN/BT, Zigbee, VESA) [<b>FANLESS</b>]
  • 2x Gigabit LAN !
  • Metal enclosure !
  • VESA Mount !
  • IoT Gateway !

  • Intel® Celeron® processor N3350
  • 32GB onboard eMMC memory
  • 2 x SO-DIMM DDR3L slots
  • 2 x GbE LAN ports (Realtek RTL8111HS)
  • 2 x HDMI ports
  • 1 x Full-size Mini-PCIe slot for 3G module or mSATA storage
  • 1 x Micro SD card slot
  • Compatible with Windows 10 IoT 64bit and Ubuntu 16.04 LTS


Share

RAM :

SSD (mSATA):

OS:

Build/Install:
Operating Properties Operating temperature: 0°C to 40°C
Operating humidity: 0%-90% (non-condensing)
Non-operating temperature: -20°C to 60°C
Non-operating humidity: 0%-95% (non-condensing)
CPU Intel® Pentium® processor N4200
4 cores, 4 threads
1.10 - 2.50 GHz
2MB L2 cache
6W max. TDP

* Intel® Celeron® processor N3350 is available for optional sku
Socket 1 x BGA 1296
Memory 2 x SO-DIMM slots
1.35V DDR3L memory
Up to 8GB, dual channel
1600/1866MHz

Pre-installed DDR3L memory module
Flash Memory 32GB eMMC
LAN 2 x GbE LAN ports (Realtek RTL8111HS)
Video Integrated in the SoC - Intel® HD Graphics 505
2 x HDMI ports, supporting a maximum resolution of 3840x2160@30 Hz
* Support for HDMI 1.4b version
Audio Realtek ALC255
Expansion Slots 1 x Full-size Mini-PCIe slot (for 3G module or mSATA storage)
1 x Zigbee module supported in option

1 x M.2 slot:
- E-key
- PCIe Gen2 x1
- Pre-installed Wifi module
Rear I/O 1 x DC-in
2 x HDMI
2 x RJ45
1 x RJ45 type COM (RS485 / 232)
TPM 1 x TPM header
OS Compatibility Windows 10 64bit
Windows 10 IoT 64bit
Ubuntu 16.04 LTS
Power Supply AC 100~240V
19V DC-in
65W / 3.42A
Packaging Content 1 x Quick start guide
1 x EL30 system
1 x 19V AC/DC power adapter
1 x US type power cord
* Please contact region sales for antenna modules
Ordering Information 9BTCV9WMR-SI
Storage 1 x Micro SD card slot
Front I/O 4 x USB 3.0
1 x SD card slot
1 x Audio combo jack (Headphone-out / MIC-in)
1 x Power button with LED
1 x HDD/SSD activity LED
System Fans Fanless
Dimension 140.8 x 107.5 x 29.5 mm
Motherboard MZAPLFP
Weight 560g
Side I/O 1 x Micro-B 5-pin *RS232 full-duplex port ( TxD, RxD, CTS, RTS, GND)

*[NOTE]:
1. Please check the pin definition and ensure the port is suitable for your peripherals.
2. The serial driver GIGABYTE provided for Windows 10 is a trial version, please contact your peripheral vendor to get the correct driver.
Data sheet Download (PDF)
Data sheet Print view
