Jetway HBJC38AZ02-20LGB (Intel i5-1145G7E) [12-24V DC, 6x LAN]

Jetway HBJC38AZ02-20LGB (Intel i5-1145G7E) [12-24V DC, <b>6x LAN</b>]
  • Intel Tiger Lake !
  • HBJC38AZ02 Series !



  • 11th Gen Intel® Tiger Lake-UP3 SoC Processor
  • Long-Life Embedded Class with Planned Lifecycle Through Q3'2035
  • 1 * Intel 2.5GbE, 5 * Intel Gigabit LAN, 16-bit GPIO, 2 * RS232
  • 1 * 2.5" Bay, M.2 PCIe 4.0 x4 NVME, 12-24V DC-in
  • Up to 3*4K @60Hz displays, via 1*HDMI, 1*DP, 1*USB 3.2 Gen2 Type-C (DP)
  • ECO-design for EuP/ErP


Share

1339.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks.
Will be ordered for you.
Add to cart
RAM :

SSD (M.2 NVME):

SSD (2.5"):

Build/Install:
Model SeriesJBC38AZ02-2LG
Part Number HBJC38AZ02-2LGB
Motherboard Specification
CPU Fanless 11th Gen Intel® Core i5-1145G7E, 1.50GHz – 4.10GHz Burst, 4-Core 8-Thread, 15W TDP, vPro (Formerly Tiger Lake)
Memory 2 x 260-pin Dual Channel DDR4-3200 SO-DIMM up to 64GB Total
Graphics Intel® Iris® Xe Graphics
Up to 3*4K @60Hz Display, via 1*HDMI + 1*DP + 1*USB 3.2 Gen2 Type-C (DP)
LAN 1 x Intel I225-V PCIe 2.5GbE
1 x Intel I219-LM PHY Gigabit LAN (iAMT 12.0)
Audio Realtek ALC888S HD Audio
Storage 1 x SATA3 6Gb/s Cable-Free Connector, 2.5" Drive Connector
1 x M.2 (PCIe 4.0 x4 & SATA, M-key, 2242/2280 NVMe)
WiFi 1 x M.2 2230 E-key Open Slot for HBJC38AZ02 Series (Non-WIFI version)
WiFi + Bluetooth Installed for HBJC38AZ02i Series (WIFI version)
Cellular 1 x M.2 B-key, 3042/3052 (USB and PCIe for 3G/4G/5G SIM)
Chassis Specification
Enclosure Size 185 (W) x 175 (D) x 60 (H) mm
Color Black
Storage Bay 1 * 2.5" Drive Bay (Only support SATA 2.5" HDD or SSD)

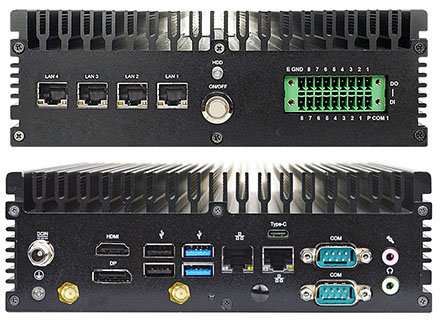

Front I/O Port 1 * Power Button
1 * HDD LED
4 * Intel 1GbE RJ45 Ports
16-bit GPIO
Rear I/O Port 1 * +12-24V 2.5mm Diameter Locking DC Power Jack
1 * HDMI 2.0b (4096 * 2160 @ 60Hz, 4K HDR)
1 * DP 1.4 (4096 * 2304 @ 60Hz, 4K HDR)
2 * USB 3.2 Gen 2 (10 Gb/s)
2 * USB 2.0 ports
1 * RJ45 LAN (10/100/1000/2500)
1 * RJ45 LAN (10/100/1000)
1 * USB 3.2 Gen 2 (10 Gb/s) Type-C with DP 1.4 (4096 x 2304 @ 60Hz)
2 * Serial Port (RS232)
1 * Line-out Jack
1 * MIC-in Jack
3 * Anntena Holes
Power Adapter : AC_90~240V / DC_12V/90W
Environment Operating Temperature : -20°C ~ 50°C with M.2 SSD, 0°C ~ 50°C with 2.5" SATA
Storage Temperature : -20 ~ 70°C
Humidity : 40%-60%, non-condensing
Certificate CE,FCC,RoHS,ErP For Barebone
CE,FCC,TUV,UL,CCC,CB,ErP For Power Adapter
Data sheet Download (PDF)
Data sheet Print view
Jetway Catalog (Rackmount) Download (PDF)
Jetway Catalog (Barebones) Download (PDF)
