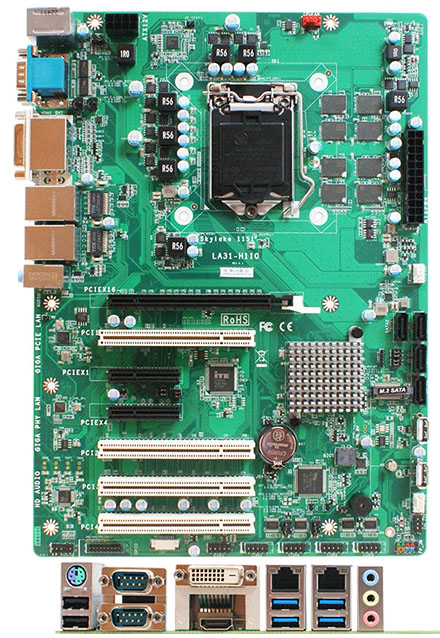

Jetway JLA31-H110-8G ATX (Intel Sockel LGA1151 H110, 2x COM, 2x LAN, 8GB RAM onBoard)

PRODUCT IS CURRENTLY NOT AVAILABLE !
Jetway JLA31-H110-8G ATX (Intel Sockel LGA1151 H110, 2x COM, 2x LAN, <b>8GB RAM onBoard</b>)
  • H110 !
  • 2x COM !
  • ATX Formfactor !
  • 8GB RAM !

  • 1. Intel® LGA1151 Socket supports 6/7th Gen Core Processor
  • Intel® Sky Lake-S H110
  • On board 8GB DDR4 Dram (Max 16GB)
  • 1* Intel® i225-V 2.5GbE, 1* Intel® i219-LM GbE
  • 1* M.2 M-Key (2242/2280,SATAIII)
  • 4* SATA III (6Gb/s,SATA4 Co-lay M Key)
  • 1* DVI-D, 1* HDMI, Output
  • 2* RS232/422/485, 4* RS232, 4* USB3.0, 6* USB2.0
  • 16bit GPIO
  • Support Onboard TPM2.0 (option)
  • 24 + 4 Pin ATX Power Input
  • ATX Form Factor (305x220mm)


Share

RAM :

SSD (M.2 NVME):

OS:

Build/Install:
Model – LA31-H110-8G / LA31-H110-16G
– LA31-H110-8G2 / LA31-H110-16G2(TPM2.0)
Form Factor – ATX (305 * 220mm)
Processor System – Intel® LGA1151 Socket supports 6/7th Gen Core Processor
– Intel® Sky Lake-S H110 Chipset
– AMI 128M Flash ROM
Memory – On board 8GB DDR4 (Max 16GB)
Storage – 1* M.2 M-key (2242/2280, SATAIII interface)
– 4* SATAIII (6.0Gb/s, SATA4 Co-lay M key)
Expansion – 1* PCI-Ex16 slot
– 2* PCI-E x4 slots( PCIE1 Interface :PCI-Ex1)
Ethernet – 1* Intel® i225-V 2.5GbE
– 1* Intel® i219-LM GbE
Graphics – Intel® HD Graphics, shared Memory
– 1* DVI-D (Max Resolution : 2560×1600@60Hz)
– 1* HDMI 1.4 (Max Resolution : 4096×2304@24Hz)
– Support Dual Displays
Audio – HD Audio: REALTEK ALC662-VD/ALC897GR
Watchdog Timer – From Super I/O to drag RESETCON#
– 256 segments (10sec ~ 255min)
Internal I/O – 4* USB2.0 (2*USB2.0 for Type A)
– 4* RS232 (COM3/4 Support 5V/12V TTL)
– 4* SATAIII (6.0Gb/s, SATA4 Co-lay M key)
– 1* M.2 M-key (2242/2280, SATA interface)
– 1* PCI-Ex16 slot
– 2* PCI-Ex4 slot (PCIE1: PCI-Ex1 interface, PCIE2：PCI-Ex4 or PCI-Ex1)
– 1* GPIO (16 bit,5V)
– 1* CPU FAN (W/ Smart FAN)
– 2* System FAN (W/O Smart FAN)
– 1* Speaker + Power LED
– 1* Chassis intrusion
– 1* SMBUS/ I2C
– 1* AT mode
External I/O – 2* RS232/422/485 (Support 5V/12V TTL)
– 4* USB3.0
– 2* USB2.0
– 1* PS/2
– 1* DVI-D
– 1* HDMI1.4
– 2* RJ45
– 1* 3JACK
Power 24 + 4 Pin ATX Power, AT/ATX Supported
– AT: Directly PWR on as Power input ready
– ATX: Press Button to PWR on after Power input ready
Compliance – CE, FCC, RoHS, REACH compatible (Option)
Temperature – Operating Temperature: 0 ~ 60° C
– Storage Temperature: -20 ~ 70° C
– Humidity: 10% ~ 90% RH @40°C (non-condensing)
OS Support – Windows 7/ 10, Windows 11(TPM2.0), Linux
