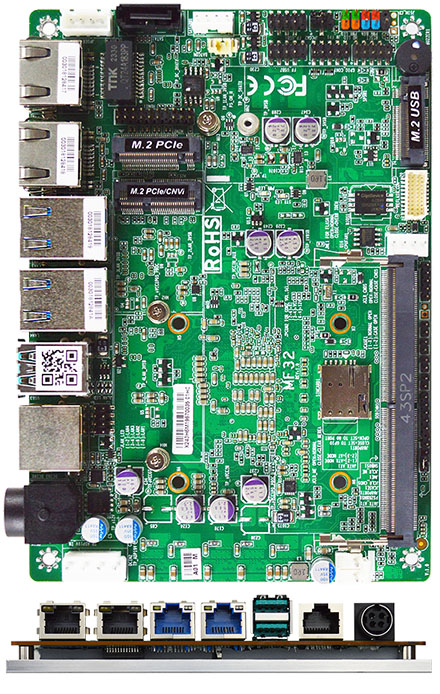

Jetway MF32-133E0 3,5" SBC (Intel Raptor Lake i5-1335UE, 4x 2.5GbE LAN) [FANLESS]

Jetway MF32-133E0 3,5" SBC (Intel Raptor Lake i5-1335UE, 4x 2.5GbE LAN) <b>[FANLESS]</b>
  • Intel i3-1335UE (TDP 15W) !
  • 3,5" SBC !
  • 4x LAN !

  • Onboard Intel® 13th Gen Core™ i5-1335UE (Formerly Raptor Lake-P, TDP 15W)
  • 4 x Intel 2.5GbE LAN
  • Optional Dual 802.3at PoE (Max. Output 40W)


Share

819.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks.
Will be ordered for you.
Add to cart
RAM :

SSD (M.2 NVME):

OS:

Build/Install:
SYSTEM
MB FORM FACTOR 3.5″
CPU Onboard Intel® 13th Gen Core™ i5-1335UE (Formerly Raptor Lake-P, TDP
15W)
Onboard Intel® 13th Gen Celeron® U300 (Formerly Raptor Lake-P, TDP 15W)
*For additional compatible CPUs, please contact regional sales
CHIPSET Intel® SoC
MEMORY TYPE 1 x DDR5 4800MHz, Single Channel SO-DIMM, up to 32GB
BIOS UEFI
WAKE ON LAN Yes
WATCHDOG TIMER 255 Levels
SECURITY Intel® PTT (Integrated fTPM)
TPM2.0 (dTPM, Optional)
RTC BATTERY Lithium Battery
DIMENSION (W X D) 148.0 (W) x 102.0 (D) mm (5.8″x 4.0″)
OS SUPPORT Windows® 11 (64bit)
Windows® 10 (64bit)
Linux
POWER
POWER REQUIREMENT DC-in 19V
POWER SUPPLY TYPE AT / ATX (Default) Mode
CONNECTOR 4-pin Power Din
Internal 4-pin Header
DISPLAY
GPU Intel® Iris® Xe Graphics
HDMI 1 x Internal Header for HDMI 1.1 (Max Resolution: 1920 x 1080@60Hz)
LAN
ETHERNET 3 x RJ45 for Intel® I226-V 2.5GbE
1 x RJ45 for Intel® I226-LM 2.5GbE
USB PORT
USB 2 x USB 3.2 Gen 2×1 (10Gbps, Formerly USB 3.1 Gen 2)
Internal Header for 4 x USB 2.0
SERIAL PORT
COM 1 x RJ50 for RS-232
Internal Header for 1 x RS-232/422/485
INTERNAL I/O
GPIO 8-Bit
SMBUS Yes
FAN 1 x 4-pin Connector for CPU Fan (PWM Mode)
FRONT PANEL HDD Active LED
Power LED
Power On/Off
Reset
ADDITIONAL Onboard 1×2-pin header and 1×4-pin header for PoE Module
1 x AT/ATX Mode Selection
1 x Chassis Intrusion
1 x PS/2
STORAGE
SATA 1 x SATA3
1 x SATA Power Connector
EXPANSION
M.2 1 x E-Key 2230 (USB 2.0/PCIe 3.0 x1) support CNVio
1 x B-Key 3042/3052 (USB 3.2 Gen 1/USB 2.0/PCIe 3.0 x1)
1 x M-Key 2242/2280 (PCIe 4.0 x4) support NVMe
SIM 1 x Nano SIM Card Slot
ENVIRONMENT & CERTIFICATION
OPERATING TEMPERATURE -20°C ~ 60°C (-4°F ~ 140°F)
STORAGE TEMPERATURE -40°C ~ 85°C (-40°F ~ 185°F)
OPERATING HUMIDITY 10 ~ 90% Relative Humidity, Non-condensing
STORAGE HUMIDITY 10 ~ 90% @40°C, Non-condensing
Data sheet Download (PDF)
Data sheet Print view
