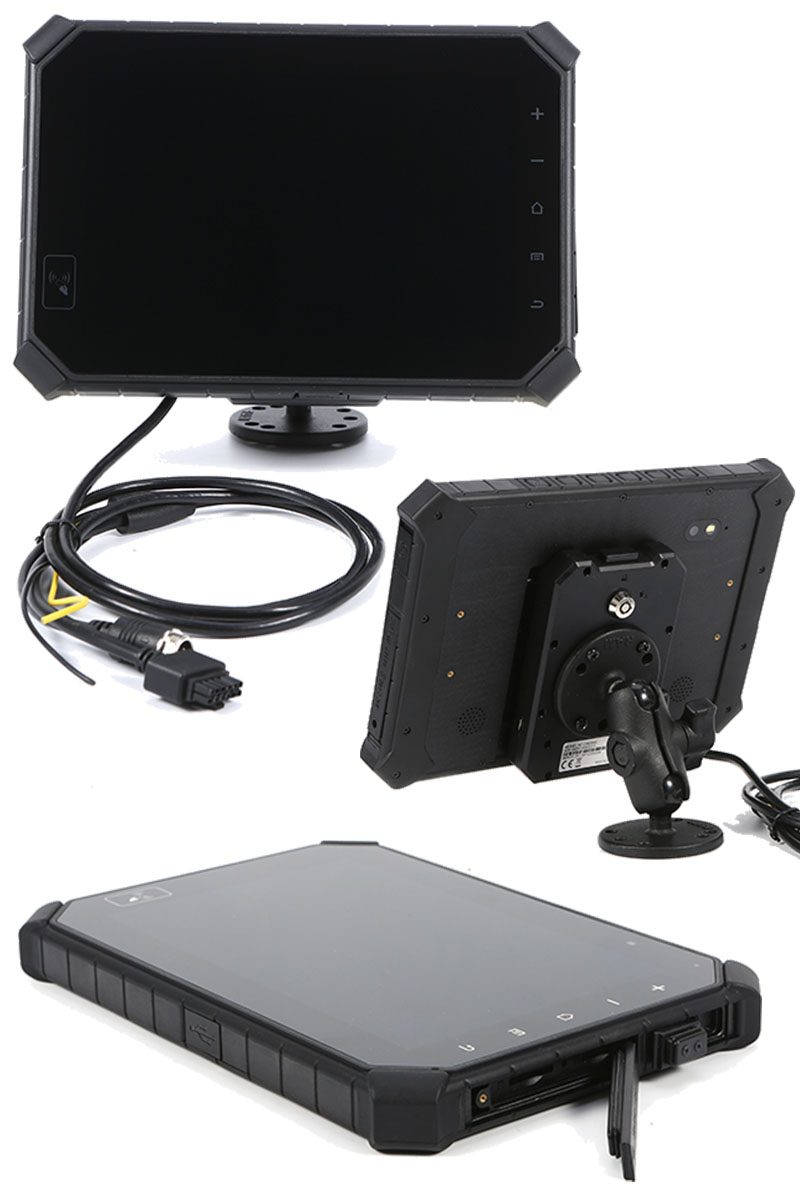

CTFPND-11C (8" Android 14 TabletPC/PND, Ruggedized, 2.0Ghz Octacore CPU/4GB RAM, 64GB eMMC, GPS/WLAN/BT/LTE, NFC, RS232)

CTFPND-11C (8" Android 14 TabletPC/PND, Ruggedized, 2.0Ghz Octacore CPU/4GB RAM, 64GB eMMC, GPS/WLAN/BT/LTE, NFC, RS232)
  • USB Type C 2.0 OTG !
  • 64GB eMMC !
  • GPS ! Bluetooth ! WiFi !
  • Android 14 !

CTFPND-11C is designed as a mobile terminal for fleet management systems and adopted for other applications. Whether field service, SaaS provider, solution provider, warehouse operator or construction contractor, it is well designed for all industrial applications.

Truck drivers use it for navigation, routing, dispatch, electronic signatures, proof of delivery, order management, vehicle maintenance, fuel consumption management, logbook and fleet operators use it for ELD and extend digital workflow to mobile vehicles to improve productivity.

The CTFPND-11C is a high-performance tablet with 8-inch display and IP67 protection. Equipped with an octa-core processor
[more]

Share

559.00 EUR
incl. 19% VAT, plus shipping
In Stock (1 pcs)

1-15WUSB PD

Add to cart

CTFPND-11C is designed as a mobile terminal for fleet management systems and adopted for other applications. Whether field service, SaaS provider, solution provider, warehouse operator or construction contractor, it is well designed for all industrial applications.

Truck drivers use it for navigation, routing, dispatch, electronic signatures, proof of delivery, order management, vehicle maintenance, fuel consumption management, logbook and fleet operators use it for ELD and extend digital workflow to mobile vehicles to improve productivity.

The CTFPND-11C is a high-performance tablet with 8-inch display and IP67 protection. Equipped with an octa-core processor, advanced GPS chipset, 4G/3G/Wi-Fi module, as well as RFID, Bluetooth, camera and support hardware customization.

Supports MDM remote control server. Supports OTA upgrades, firmware customization, APK integration and debug log.

  • High performance media tablet with rugged design with IP67 rating
  • Rear Camera 20MP
  • 8” capacitive multi touch screen tablet for great mobility
  • True HD 1080P Video Playback & Output
  • High capacity battery for an entire days use
  • Android 14 support
  • GPS/WLAN/BT/2G/3G/4G(LTE)
  • NFC
  • Serial port (RS232)


Hardware
Dimension 227x156x22mm, 825g
CPU Processor Speed 2.0Ghz Octa Core
OS Android 14
Memory 4GB RAM
Stoorage 64GB NAND Flash
Memory Slot micro SD Cardslot (up to 512GB)
GPS Chipset GPS, GLONASS, GALILEO
Color Display 8" TFT multi touch capacitive touchscreen
Panel Resolution 1280 x 800
Speaker Yes
Antennas Internal
Radio Frequency 2G-GSM: 850,900, 1800, 900MHz
3G-WCDMA: B1, B2, B4, B5, B8
4G-LTE FDD: B1, B2, B3, B4, B5, B7, B8, B12, B17,
B20, B28, B66
4G-LTE TDD: B40, B38, B41
Camera 20MP rear
Light Sensor Ambient Light
Motion Sensor Accelerometer, E-Compass, Gyroscope
Wireless Interface WLAN (802.11 a/b/g/n/ac; 802.11 d/e/h/i/j/k/r/v/w + BT V5.0 5GHz: 802.11a/n/ac — up to 500 Mbps;
2.4GHz: 802.11b/g/n — up to 144Mbps WFA WPA/WPA2 Personal, AES-CCMP,
WPI-SMS4, GCMP, WPS2.0, WAPI (hardware)
LED Two-color LED (Red/Green)
Operating voltage 12V input
Battery Built-In (6300mAh, Standy 1 week, ~6hrs operating)
IP Standard IP67
Betriebs- und Lagertemperatur -20 bis 60°C Storage: -20℃ to 70℃
I/O ports 1x USB2.0 Typ-C (Data + power)
1x3.5mm Audio Headphone Jack
1x SIM card slot
1x Mini USB 2.0 OTG on the cradle
Lieferumfang 1x 8" Android TabletPC
1x Cradle
1x RAM Mount
1x USB Cable
1x AC USB Adapter
Data sheet Download (PDF)
Data sheet Print view
Specifications Download (PDF)
